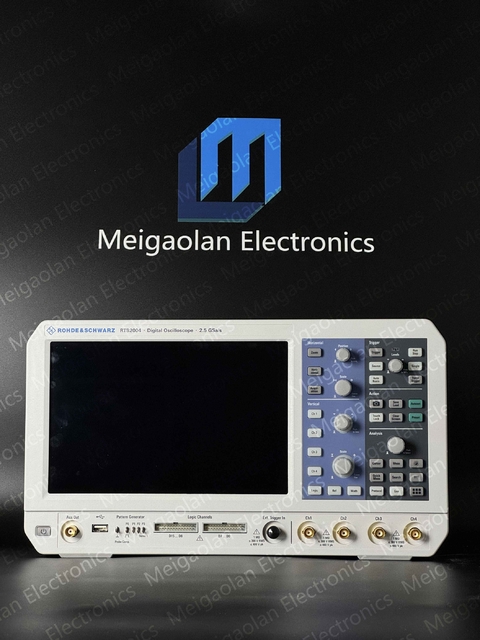

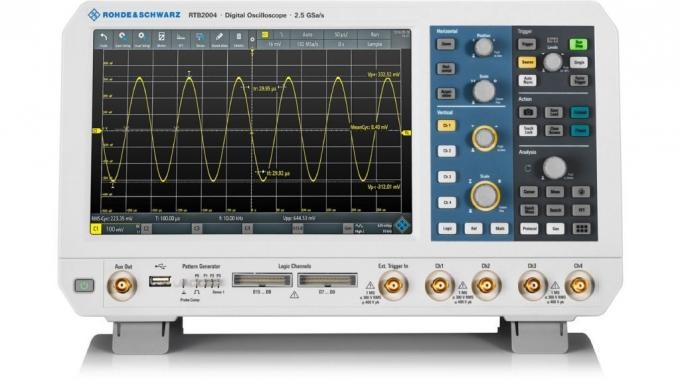

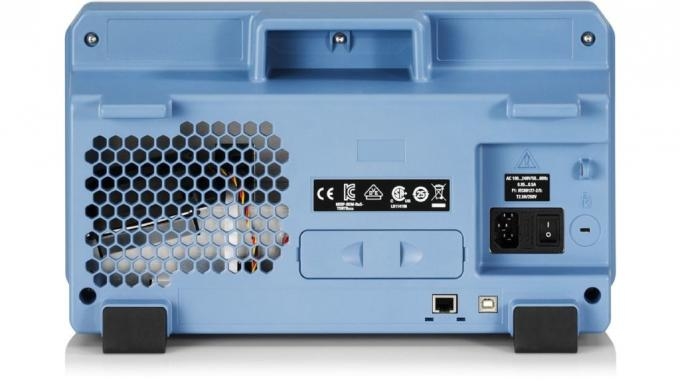

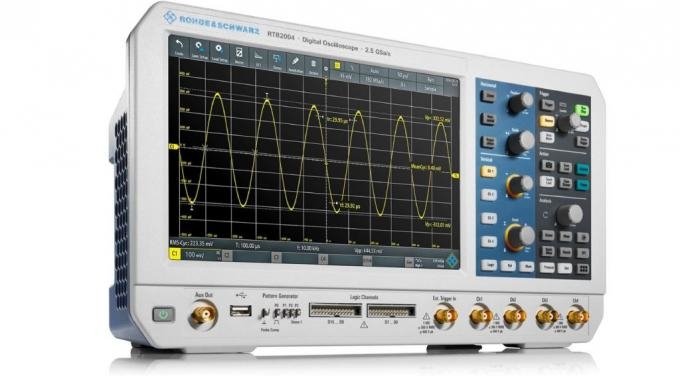

Rohde and Schwarz RTB2002 RTB2004 oscilloscope 4 Channel 300MHz in full working conditions
Rohde and Schwarz RTB2002 RTB2004 oscilloscope 4 Channel 300MHz in full working conditions
Description of Rohde and Schwarz RTB2002 or RTB2004
The R&S RTB2002 or RTB2004 features a customized Rohde & Schwarz engineered 10-bit A/D converter thatdelivers a fourfold improvement compared to conventional 8-bit A/D converters.The increasedresolution results in sharper waveforms with more signal details that would otherwise be missed. Oneexample is the characterization of switched-mode power supplies. The voltages across the switchingdevice must be determined during the on/off times within the same acquisition.
The R&S RTB2002 or RTB2004 offers a class-leading memory depth: 10 Msample per channel are available, even 20Msample in interleaved mode.The R&SeRTB2000 offers a class-leading memory depth: 10 Msample per channel are available, even 20Msample in interleaved mode.
Features of RTB2002 or RTB2004:
Bandwidth: 70 MHz to 300 MHz
Sample rate: up to 2.5 Gsample/s
Memory depth: up to 20 Msample
ADC resolution: 10 bit
Display: 10.1" capacitive touchscreen
Technical Specifications
Options of RTB2002 or RTB2004
| RTB2002 | Oscilloscope, 70 MHz, 2 channels |
| RTB2004 | Oscilloscope, 70 MHz, 4 channels |
| RTB-B221 | Upgrade of R&S®RTB2002 oscilloscopes to 100 MHz bandwidth |
| RTB-B222 | Upgrade of R&S®RTB2002 oscilloscopes to 200 MHz bandwidth |
| RTB-B223 | Upgrade of R&S®RTB2002 oscilloscopes to 300 MHz bandwidth |
| RTB-B241 | Upgrade of R&S®RTB2004 oscilloscopes to 100 MHz bandwidth |
| RTB-B242 | Upgrade of R&S®RTB2004 oscilloscopes to 200 MHz bandwidth |
| RTB-B243 | Upgrade of R&S®RTB2004 oscilloscopes to 300 MHz bandwidth |
| RTB-B1 | Mixed signal option for non-MSO models, 300 MHz |
| RTB-B6 | Arbitrary waveform generator |
| RTB-K1 | I 2C/SPI serial triggering and decoding |
| RTB-K2 | UART/RS-232/RS-422/RS-485 serial triggering and decoding |
| RTB-K3 | CAN/LIN serial triggering and decoding |
| RTB-K15 | History and segmented memory |
| RTB-K36 | Frequency response analysis (Bode plot) |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
