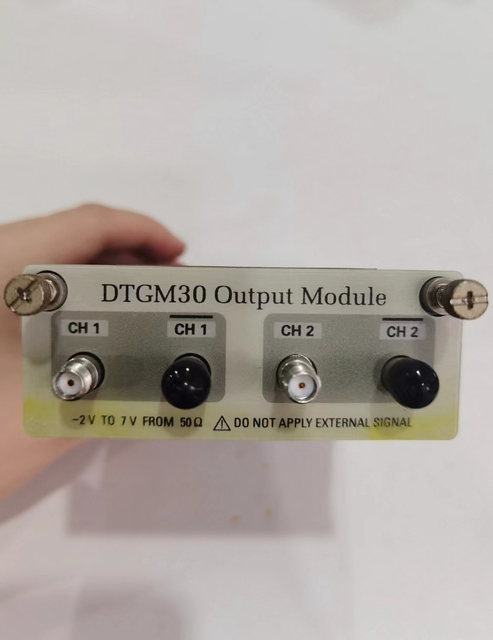

Tektronix DTGM30 Output Module for Data Timing Generator tested in full working conditions

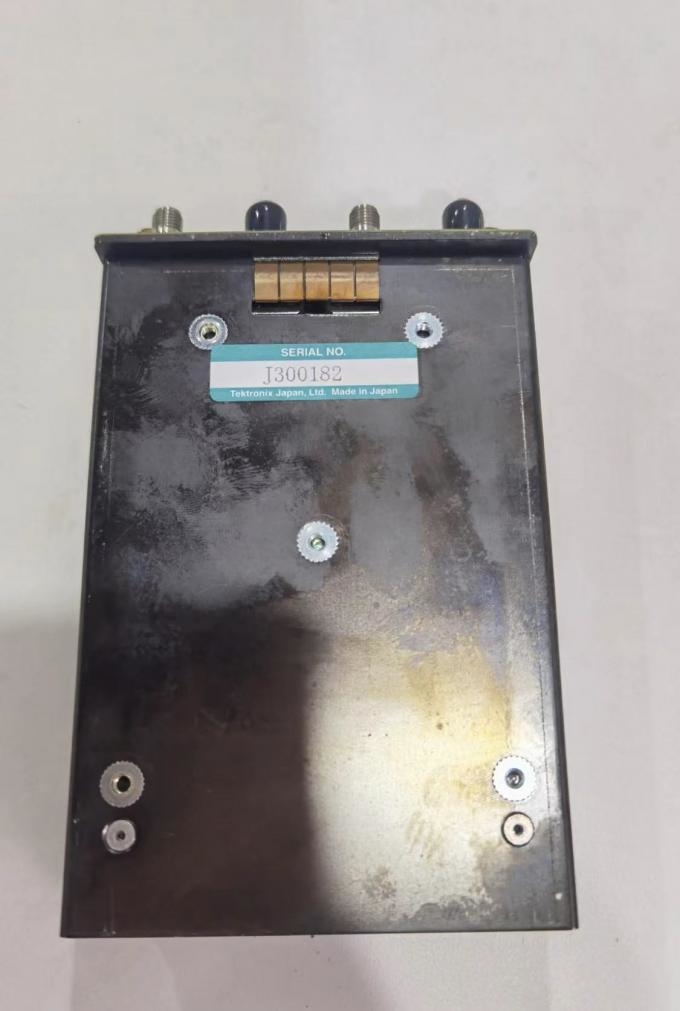

Tektronix DTGM30 Output Module for Data Timing Generator tested in full working conditions
The Tektronix DTG5000 Series combines the power of a data generator with the capabilities of a pulse generator in a versatile, bench-top form factor, shortening the duration of complex test procedures and simplifying the generation of low-jitter, high-accuracy clock signals, parallel or serial data across multiple channels. Its modular platform allows you to easily configure the performance of the instrument to your existing and emerging needs to minimize equipment costs. Three mainframes and five plug-in output modules combine to cover a range of applications from legacy devices to the latest technologies. In addition, eight low-current, independently-controlled DC outputs can substitute for external power supplies. Each mainframe incorporates a full compliment of auxiliary input and output channels to easily integrate with other instruments, such as oscilloscopes and logic analyzers, to create a flexible and powerful lab.
Product Family: DTG5078, DTG5274, DTG5334, DTGM10, DTGM20, DTGM21, DTGM30, DTGM31, DTGM32, DTG-5078, DTG-5274, DTG-5334, DTGM-10, DTGM-20, DTGM-21, DTGM-30, DTGM-31, DTGM-32, DTG 5078, DTG 5274, DTG 5334, DTGM 10, DTGM 20, DTGM 21, DTGM 30, DTGM 31, DTGM 32
Output Module Characteristics
Basic Features DTGM30
Output Channels and Connections 2 complementary chanels 4 SMA connectors
Maximum Data Rate 3.35 Gb/s
Normal/Complement Selectable
DTGM30 2 channels. 1.25 Vpk-pk (50 Ω), 2.5 Vpk-pk (1 MΩ). Tr/Tf (20% to 80%) <110 ps (1 Vpk-pk, into 50 Ω), fixed.
| C3 | CALIBRATION SERVICE 3 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 2 |
| C5 | CALIBRATION SERVICE 5 YRS. PROVIDES TRACEABLE OR FUNCTIONAL VERIFICATION EVENTS WHICHEVER ARE APPLICABLE TO THE PRODUCT. CALS ARE AT TEKTRONIX RECOMMENDED INTERVAL DURING THE COVERAGE PERIOD. CAL COVERAGE INCLUDES THE MANUFACTURERS CAL + 4 |
| D1 | TEST DATA; CAL DATA REPORT |
| D3 | SERVICE; TEST DATA (REQUIRES OPTION C3) |
| D5 | CALIBRATION DATA REPORT 5 YEARS (WITH OPTION C5) |
| R3 | SERVICE; REPAIR WARRANTY EXTENDED TO COVER 3 YRS. |
| R3DW | REPAIR SERVICE COVERAGE 3 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 3 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE |
| R5 | SERVICE; REPAIR WARRANTY EXTENDED TO COVER 5 YRS |
| R5DW | REPAIR SERVICE COVERAGE 5 YEARS (INCLUDES PRODUCT WARRANTY PERIOD) 5 YEAR PERIOD STARTS AT TIME OF CUSTOMER INSTRUMENT PURCHASE |
