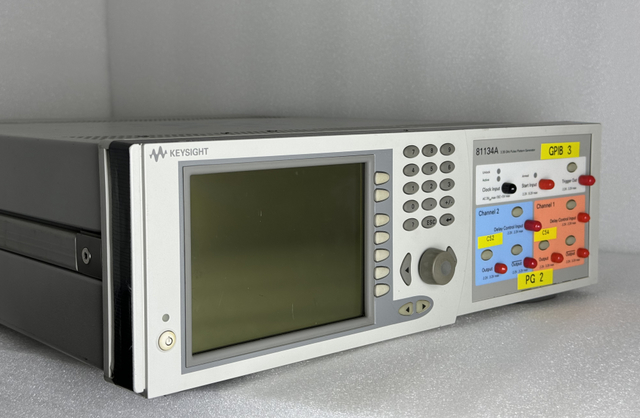

Keysight (Agilent) 81134A Pulse Pattern Generator
8%
OFF

Keysight (Agilent) 81134A Pulse Pattern Generator, 3.35 GHz, dual-channel

SKU. 1
$ 25,800 $ 28,000 save  $2,200
  • 10+ pieces
    $ 23,220

Product name*

Pulse Pattern Generator

Frequency*

3.35 GHz

Condition*

Pre-Owned

Functions*

Tested in Full Working Conditions
Stock:
1 in Stock
Quantity:
- +
piece(s)
Shipping:
$ 500
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : 3-27 working days. See details
Total Price:
$ 25,800 $ 28,000 save $2,200

Not include shipping cost.

Buy Now
Add to Cart
Or buy on other websites:

Add to Inquiry List

#
/ piece
Request For Quotation Continue Shopping
This item is collected in wish list
Keysight (Agilent) 81134A Pulse Pattern Generator

LINK-PP LPJ1075-1BHNL 100% Cross RTA-110AHQ1A UDE

Choose your location Shipping Inquiry
Ship to:

United States

Delivery Options and delivery speeds may vary for different locations.
Sorry, delivery is not possible in your location.

  • Carrier

    CostDelivery TimeTracking

  • DHL

    $ 500 3-27 daysAvailable

  • Fedex IP

    $ 500 3-27 daysAvailable

  • UPS Express Saver

    $ 500 3-27 daysAvailable

You’ll see exact shipping costs and arrival dates when you checkout.
Keysight (Agilent) 81134A Pulse Pattern Generator

Keysight (Agilent) 81134A Pulse Pattern Generator, 3.35 GHz, dual-channel

Requirement Details

Your message must be between 20-3,000 characters!

Email

Check your email

Phone

Check your phone number

Submit Requirement
  • Description
  • Specification
  • Questions & Answers
  • Reviews(0)

Description of Keysight (Agilent) 81134A Pulse Pattern Generator

When timing and performance requirements are critical, for example in high-speed serial bus applications like PCI Express or Serial ATA, its fast rise times and low intrinsic jitter allow the precise and in-depth characterization of devices, e.g. receivers or backplanes. On top of that, it allows to generate application-specific signal levels like pre- and de-emphasis (PCI Express) or squelch (Serial ATA). The Agilent 81134A lets you test your DUT instead of the pulse or data source!

Keysight (Agilent) 81134A Pulse Pattern Generator, 3.35 GHz, dual-channel

Features:

Frequency range from 15 MHz - 3.35 GHz

Two ouput channels

Low jitter

Fast rise times (20%-80%) < 60 ps

Delay modulation (jitter emulation)

Variable cross-over point (eye deformation) LVDS applications can be addressed with output levels from 50 mV to 2 V Pre-/de-emphasis and squelch levels for PCI Express and serial ATA

LVDS applications can be addressed with output levels from 50 mV to 2 V

Pre-/de-emphasis and squelch levels for PCI Express and serial ATA

Hardware-based PRBS

Memory-based pattern generation

Basic test patterns for Infiniband, PCI-Express and Serial ATA

Deep 12 MBit pattern memory per channel supports tests that require long data streams like disk drive tests

PC-based Pattern Management Tool, easier to handle long patterns: generate, modify and store patterns on a Microsoft Windows based PC and an easy-to-use function to quickly load the selected pattern to the 81134A via one of the remote control interfaces GPIB, LAN or USB

Clock and data signals distortion

Versatile variable cross-point

Jitter insertion capabilities

Frequency, level and shape of injected jitter variation emulate real-world signals, e.g. by connecting an arbitrary waveform generator like the Agilent 33220A to the Pulse Pattern Generators delay control input

Graphics User Interface: quick access to all relevant parameters

Controllable via the interfaces GPIB, LAN and USB 2.0

List of Options for Keysight (Agilent) 81134A Pulse Pattern Generator
1CPRackmount and handle kit
R-51B-001-3CReturn to Agilent Warranty - 3 years
R-51B-001-5CReturn to Agilent Warranty - 5 years
R-51B-001-CReturn to Agilent Warranty - 1 year
RMKTAgilent Refurbished Product (Do Not Use - Certiprime Option)
UK6Commercial calibration certificate with test data
Specifications & Attributes for Keysight (Agilent) 81134A Pulse Pattern Generato
Form Factor
Rackmount ( /1CP )

Operating temperature 0 to +55 °C

Storage temperature –40 to +70 °C

Humidity 95% R.H. (0 to +40 °C)

Warm up 30 Minutes

EMC Class A

Power 100V to 240V AC nom.; 200 VA max.; 47 Hzto 63 Hz

Net weight 14.8 kg (32.6 lbs)

Shipping weight 19 kg (41.9 lbs)

Dimensions 145 x 426 x 553 (mm) 5.7 x 16.75 x 21.75 (in)

Recalibration period 3 years recommended
